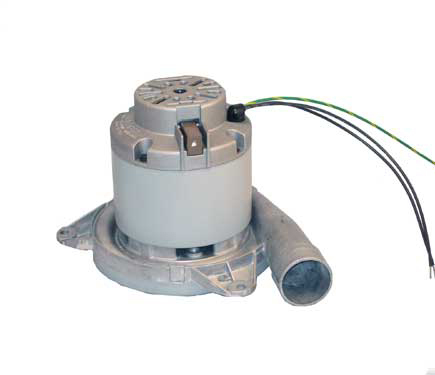

Vacuum System MB11992112 Replacement Motor 240V 7.2" 2 Stage
Item#: 119962-12
120 Volt 7.2" Single Stage
The motor was used in the following central vacuum models:
SR52.Vacuum System MB11992112 Replacement Motor 240V 7.2" 2 Stage
| Basic Model Data |
| Volts: 120 | Discharge: Tangential |
| Fan Stages: 1 | Fan Diameter: 7.2 Inches |
| Type: Bypass | Bearings: Double Ball |
| |
| General Motor Performance |
| Rating Watts: 1816 | Air Watts: 585 |
| Sealed Vacuum: 103.6 Inches | Max Airflow: 140.8 CFM |
| |
| Motor Performance at Operating Orifice 3/4" |
| Vacuum: 75.8 Inches | Airflow: 61.8 CFM |
| Input Watts: 1514 | Input Amps: 13.4 |
| Air Watts: 551 | Motor Speed: 27,070RPM |
